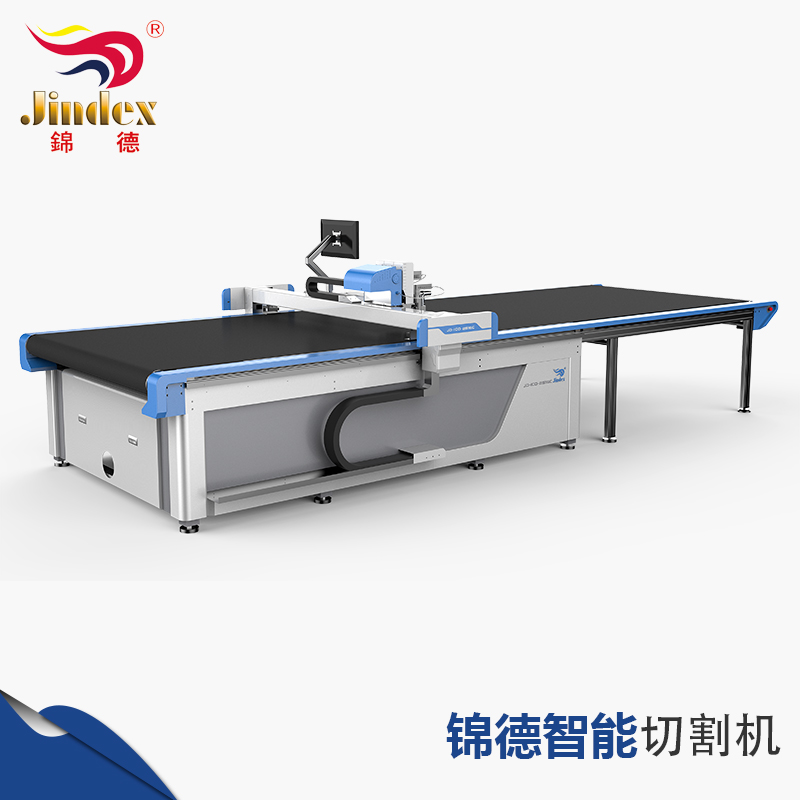

Functional features: 1. Electric vibration knife and gun head, strong power, high vibration frequency, up to 25,000 times per minute.
2. The transmission system of the cutting machine adopts imported linear guide rail, rack and gear, and the cutting precision reaches zero error to and from the origin.
3. The machine has function head optional: vibration knife, round knife, V scissors, V knife, creasing wheel and drawing pen, etc.It can cut asbestos gasket, rubber gasket, honeycomb board, plastic corrugated board, plastic hollow board, grey board, composite material, rubber board, pearl cotton and EVA board etc.
4. Programmable multi-axis motion controller, with stability and maneuverability reaching the leading technical level at home and abroad.
5. The machine table is made of fiberboard imported from the United States, with good air permeability, durable and not easy to deform.
6. Adopt the upper computer control system completely developed by ourselves, which is able to learn and operate humanized interface, and support remote teaching, remote maintenance and remote upgrade, so that customers can use more worry free.
7. Can be connected to any CAD software, widely used in gasket industry, clothing industry, composite materials, luggage industry, automobile industry, advertising and printing industry, decoration industry, furniture industry and other industries of drawing and cutting.
8. Optional loading rack and automatic feeding device.
Table of Technical Information on Intelligent feed cutting machine | ||||
技術參數/型號 Technical information/model | JD-ASF-1410A | JD-ASF-1813A | JD-ASF-2516A | JD-ASF-2520A |
工作特性 Operation properties | 電腦操作與切割機同時進行，快速完成數據傳輸，可連續使用 Computer operation and cutting machines can be used simultaneously for quick data transmission capable of continuous operations | |||
切割速度 Cutting speed | 最快可達1500mm/s Maxi 1500mm/s | |||
切割厚度 Cutting Thickness | 0.2-60mm | |||
切割材料 Cut materials | 可切割30mm以下的復合材料、皮料、布料、亞克力、珍珠棉和泡沫KT板等多種材料。 Corrugated materials, sponge and foam board, lvory cardboard, gray paper, corrugated paper, plastic sheets, composite materials and leather materials maximum cutting thickness at 30mm | |||
筆數 Number of pens | 8組不同的筆畫：半刀、全刀、壓輪設置、銑刀切割 8 different groups of strokes, half blades, full blades and pressure wheel setup | |||
定位方式 Positioning device | 全自動攝像定位 Automatic camera positioning | |||
固定紙的方式 Method for fixing paper | 真空吸附 Vacuum absorption | |||
切割精度 Cutting tolerance | ±0.2mm | |||
重復精度 Repeat accuracy | ≦0.05mm | |||
切割圓形直徑 Minimum circle | ≧5mm diameter | |||
傳輸接口 Transmission interface | 以太網口 Ethernet port | |||
兼容軟件格式 Format compatible | AI軟件、Autocad、Coreldraw等軟件都可以直接輸出，無需轉換，且?guī)ё詣觾?yōu)化 Compatibility format AI software, Autocad, Coreldraw and all box software | |||
指令系統 Direcive system | HP-GL和GP-GL HP-GL and GP-GL | |||
數控面板 Digital control panel | 液晶顯示和觸點按鍵 Liquid crystal display and contact button | |||
傳動材料 Transmission materials | 齒輪齒條傳動 Gear-rack drive | |||
工作電壓和功率 Supply voltage | 交流220V 380V ±10%，50HZ；整機功率6kw；保險絲規格6A AC 220V 380V ±10%，50HZ | |||
電機類型 Motor type | 全進口三菱伺服電機 adopts servo motor | |||
振動刀頭 Vibration blade | 振動刀頭電機每分鐘25000轉 Vibration cutter head motor at 25000rpm | |||
切割面積 Cutting area | 1400mm*1000mm | 1800mm*1300mm | 2500mm*1600mm | 2500mm*2010mm |
外觀尺寸 Overall dimension | 2300*1700*1220mm | 2700*2000*1220mm | 3400*2300*1220mm | 3400*2710*1220mm |
